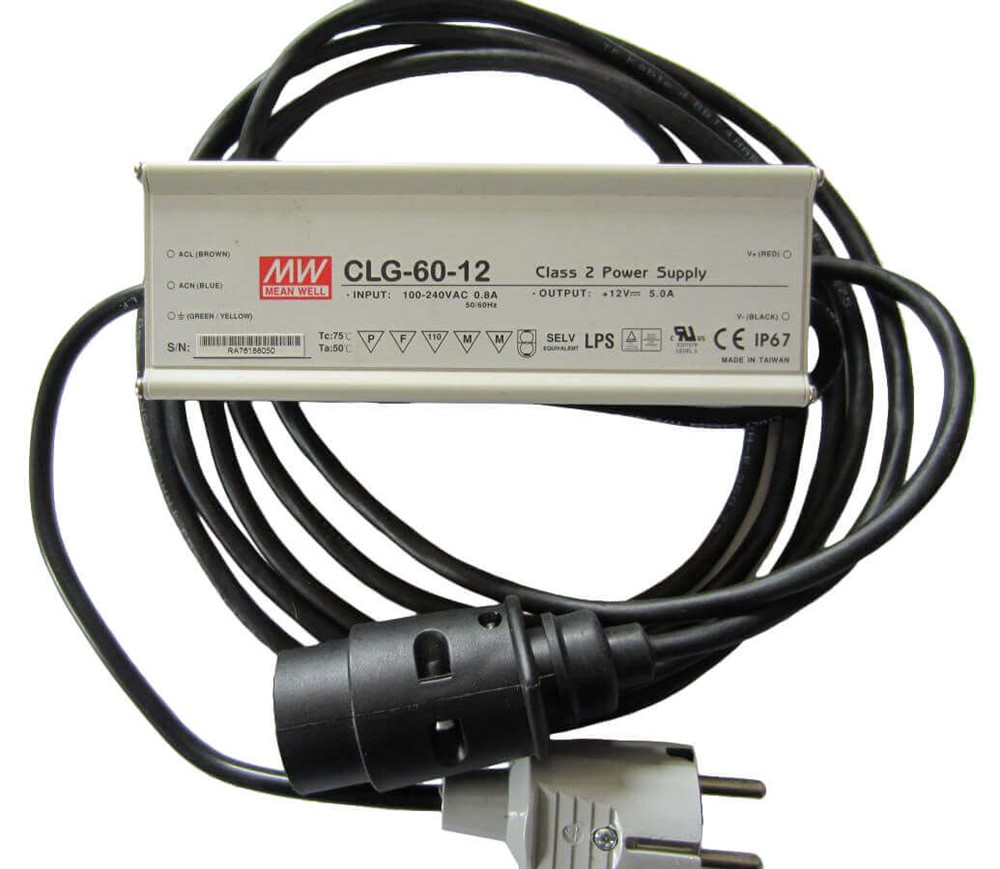

Power supply that transforms 90-264VAC to 12VDC to use with:
1. Safetrack welding chair with fan and seat heating (SAFE RW10169)
2. Safetrack welding chair with fan (SAFE RW10170).
5m cable included.
Technical data
Output voltage |
12 VDC |
Output current |
11 A |
Input voltage |
90...295 VAC, 47...63 Hz 127...417 VDC |
Power |
132 W |
Dimensions L x W x H |
229 x 68 x 38.8 mm |
Short-circuit-proof |
yes |
Tested standard |
EN 61347, EN 61000, EN 61547, ENV 50204, UL 1310, CAN/CSA C22.2 |
Connection, primary side |
Cable 0.3 m, unterminated |
Connection, secondary side |
Cable 0.3 m, unterminated |
RoHS information |
Conforms to the RoHS directive |
Item family description
Switching, wide input voltage range
Integral power factor correction (PFC)
Protected against short-circuit, overload, over-temperature
Over-voltage protected output
