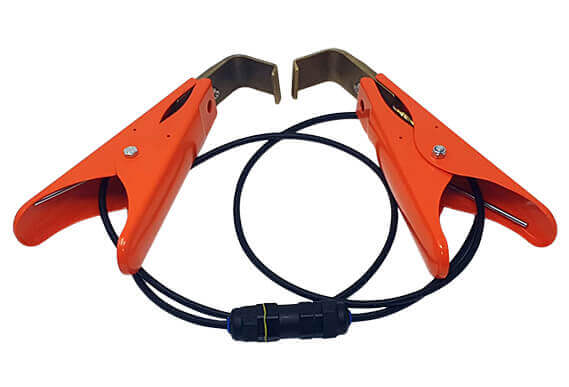

SafeShunt™ Track Circuit Shunt
The SAFETRACK® Track Circuit Shunts or Short Circuit Device is a very safe shunting device used to short out the track circuits to give a ”stop” condition.
Will not even release by a foot trip, thanks to a well thought-out design.
Fits most types of rail profiles.
The tongs are easily fitted to the rail and have an excellent contact grip.
Orange painted for good visibility.
Technical specification:
Cable lug: Hot pressed brass
Contact screw: Stainless steel
Cable: Multi wire black 10mm² copper PVC insulation, red cable as optional
Tong handles: Orange painted sheet steel
Length: 1860 mm
Resistance: 0,5 Ohm
Accessory: Bag for SafeShunt & SafeGrip, SAFE 7008
DISPOSITIVO (CAVO) DI SHUNTAGGIO
Il dispositivo di cortocircuitazione SAFETRACK® è facile da collegare e fornisce
un ottimo contatto tra le rotaie.
Équipement de court-circuitage
L'équipement de court-circuitage Safebond est facile à mettre en place et fournit un excellent contact entre les rails.
