- Extreme capacity
150 PinBrazings/70 SafeBonds per charge, 2h recharge
- Battery powered
Nano Li-Ion, longlife and lead-free
- Digitized
Same perfect bonding result every time (patent)
- Lightweight
Only 14 kg / 30,9 lb
- Automated gun
Self adjusting (patent)
ECONECT XP© - PinBrazing & SafeBond® unit
ECONECT XP© is ideal for large projects where it replaces older, much larger and heavier equipment. With an unmatched performance, you make over 150 PinBrazing/70 SafeBond® connections on a charge.
ECONECT XP© is not only easy to carry, ergonomic and economical, but also part of our project Safetrack Eco Product which is reflected in our continuous work for a better environment. ECONECT XP© Li-Ion battery is equivalent to over 50 lead batteries under its lifetime.
For SafeBond® connections, ECONECT XP© must be equipped with the patented SB15 Automatic SafeBond® Gun (P/N 91017)
Technical Specification:
| Voltage |
36 V DC |
| Number of brazes |
150 (70 SafeBond) |
| Weight (incl.battery) |
14 kg/30,9 Lb |
Dimensions:
| Length |
320 mm |
| Width |
150 mm |
| Height |
390 mm |

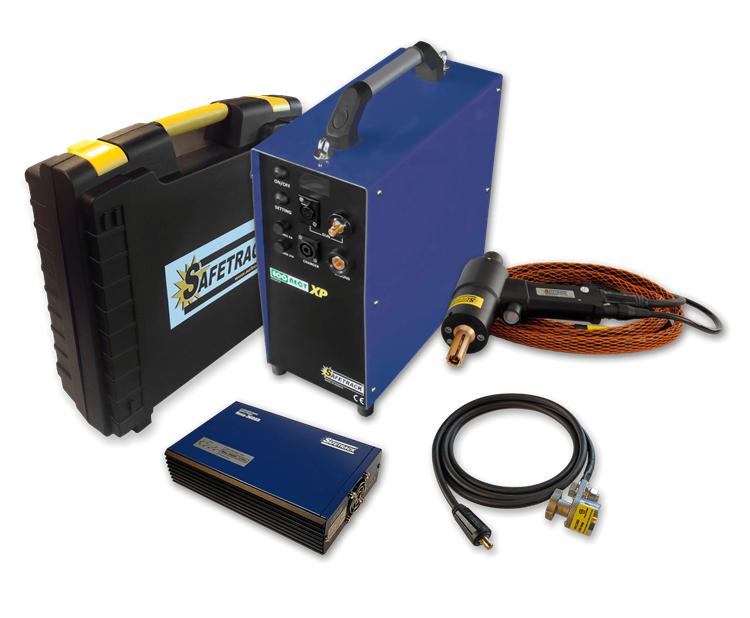

ECONECT XP© (94800250) is delivered with:
| Braze pistol S15 Automatic |
SAFE 91015 |
| Pinholder 8-9,5mm |
SAFE 9211 |
| Ringholder 8-9,5mm |
SAFE 9202 |
| Battery 2 pcs (required) |
SAFE 80982 |
| Stationary charger 36V/230V |
SAFE 8048 |
| Ground Super magnet |
SAFE 80730 |
| Tool case |
SAFE 95240 |
| Shoulder strap |
SAFE 9523 |
Add Cordless Grinding Machine (not included): Grinder Makita BGD800, SAFE 593070
Accessories:
| Ground Grip |
SAFE 8071 |
| Grinding wheel, silicon free |
SAFE 8025 |
| Carbide burr, type C |
SAFE 8014 |
| Carbide burr, type C extended |
SAFE 8014XL |
| Pin holder 8-9,5 (A) |
SAFE 9211 |
| Pin holder M8 (B) |
SAFE 9213 |
| Pin holder M10 (C) |
SAFE 9215 |
| Pin holder M12 (D) |
SAFE 9217 |
| Ring holder 8-9,5 |
SAFE 9202 |
| Ring holder M8/M10/M12 |
SAFE 9204 |
| Extension set for S15 8-9,5mm |
SAFE 9227 |
| Ext. set for M8/M10/M12 |
SAFE 9229 |
| Stationary charger 36V/115V |
SAFE 80481 |
| Vehicle charger 12V |
SAFE 80561 |
ECONECT© Advantages:
Important properties of the new Safetrack® Li-Ion battery for ECONECT XP©:
- Flat discharge curve. 80% of the capacity of the battery can be used.
- 5x higher energy per unit of weight than lead-acid batteries.
- Lifetime, 1000 cycles.
- Low self-discharge, can be stored during long time.
- Below +0°C (32°F) an automatic built-in preheating feature of the battery.
Switch on the unit and it automatically preheats the battery if necessary. Required preheating time is labeled on the unit.
- Must be charged within a temperature range of 0 to 45°C (32 to 113°F).
- Can be fast charged, no equalization charging needed. 2-3h charging.
- Lithium ion batteries are environmentally friendly. Does not contain mercury, cadmium or lead, but will still have to be recycled.
- Max temperature is +55°C (130°F).
